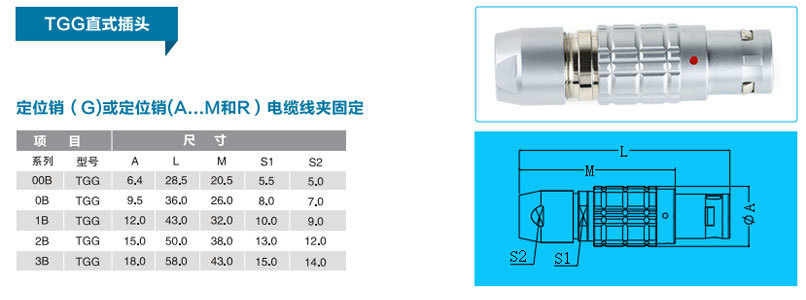

TGG straight plug (without sheath/nut type)
key word : B series K series P series T series
Push-pull self-locking connector B series standard universal straight plug (without sheath/nut type), blind mating design; the guide pin on the plug is mated with the corresponding socket to ensure the alignment during blind mating Standard; stable plug design, support a variety of DC and signal configurations, can be configured according to requirements; products meet the EU RoHS environmental protection requirements;
Applicable cores: 2-30 cores
Surface treatment of pearl chromium, nickel; anti-oxidation, etc.
Model: B series standard universal straight plug (without sheath/nut type)
Positioning device: multi-key position to prevent mis-insertion (G is a standard positioning pin, used for connector alignment)
Waterproof IP rating: IP50
Salt spray corrosion test: >48h
Reliability: The use of high-quality parts makes the service life of Zhihang precision connectors more secure
Sturdiness: suitable for use in high vibration and strong shock environments.
Aesthetics: The high-tech design of Zhihang precision connector is very attractive, and the novel appearance can adapt to various customer requirements
Anti-electromagnetic interference: The 360° shielding of the metal shell of the Zhihang precision connector provides a full range of EMC protection
JHR series straight plug (male)
Multi key position anti misinsertion design, blind insertion design; plug and socket positioning design, plug and socket insertion to ensure the alignment during blind insertion, self-locking when the position sound is raised, screw fixed tail outlet hole, the size can be adjusted by itself, the tail can be customized with glue; the product meets the requirements of EU ROHS environmental protection.
F series TLG short plug(pearl chrome plated)
Push pull self-locking connector F series standard universal straight plug, blind plug design; plug internal design positioning piece, plug and socket plug to ensure the alignment during blind plug; stable plug design, waterproof after the head seat plug, can reach IP68; the product meets the EU ROHS environmental protection requirements;
0P straight plug PAG (with bend relief) standard medical connector
Straight push-pull lock structure, fast pull, high density, small volume, blind plug, especially suitable for high density installation, suitable for cable specifications 20awg, 24awg, 28Awg, 28Awg, the product has positioning, anti misplug function, divided into 2-9 contacts, multi-contact optional.
1P PAG straight plug (with cable collet) standard medical connector
Straight push-pull lock structure, fast pull, high density, small volume, blind plug, especially suitable for high density installation, suitable for cable specifications 20awg, 22Awg, 28Awg, the product has four positioning options, anti misplug function, divided into 2-14 contacts, multi-contact optional.
Floating butt joint, installation free (for cable extension), straight push-pull locking structure, fast plug, high density, small volume, blind plug, especially suitable for high density installation.
1P series fixed socket,with two nuts,with 90°contacts(back panel mounting)
Push pull locking mode, which realizes locking and disconnection through push-pull, is convenient to operate; the product adopts plastic shell, the needle contact is 90 degree bent needle (PCB board welding), with positioning and anti misinsertion function; the product conforms to ROHS standard.
